Wednesday, June 24, 2015

Sawmill floors and mission posts: midpoint update at Molino.

We are now in week six of the Pensacola Colonial Frontiers 2015 field school, and still making good progress on both the mission and sawmill portions of the dig.  We have two excavation units still in progress on the lower terrace and bluff slope, and have finished up one very deep and complex "shovel test" (which is actually a mini-excavation unit, dug in levels at Molino instead of the standard top-to-bottom shovel test of the same size, 50x50 cm).  The first is located along the slope below the summit of the bluff but above the sawmill floor on the lower terrace, and was originally laid in to discover the southern boundary of a brick floor discovered last year.  During excavation, students found that the clay comprising the bluff seems to have been truncated and leveled in this area so that the brick floor could be laid adjacent to the cut, and after digging through quite a bit of overlying sediment and debris, yesterday the top of the bricks were finally reached.  Further excavation should allow us to determine more about how this structural feature was constructed, and what the function of this brick floor may have been for the sawmill, especially given the location of what we believe to have been the brick chimney and steam boiler just a few meters to the north.  The brick floor has soot and ash deposits, and charred wood and nails along the edge, all probably associated with the 1884 fire that destroyed Molino Mills.

Melissa and Kelsey working on the bluff-slope unit.

Molded glass from the same unit, with "Montgomery, Alabama" among the markings.

Taylor cleans dirt off the newly-exposed brick floor in this unit.

One of several nails discovered along the margins of the brick floor.

Farther east out on the lower terrace (an area of the site most prone to mosquitoes since it is technically within the floodplain adjacent to the modern swamp bottom), another unit has been excavated through alluvial sand to what appears to be a clay floor, with more evidence of the 1884 fire, as well as a considerable jumble of large mortared bricks that may have been part of one or more collapsed brick piers in this area.  Whether these piers supported mill structures or machinery within such structures has yet to be determined, but this unit is providing great new information about the sawmill.

Olivia, Taylor, Melissa, and Emma hold sheets for shade in Jen's swamp-bottom unit.


Large pier fragments made of mortared brick amidst alluvial sands.

A nearby shovel test just completed and backfilled last week along the base of the upper terrace bluff has provided other clues.  Deep below more recent colluvial and alluvial sediments was found a deposit of broken brick rubble and other debris adjacent to what appears to have been a thick clay pad that may have served as a floor, and which bears a blackened layer on its uppermost surface.  This clay was apparently laid on top of a white sand base, and below both the bricks and the clay-sand feature was the original sand and clay comprising the lower terrace.  Since we got such a small window into these features, interpreting their function will be difficult, but we currently suspect the brick-filled deposit may have been a trench dug between the base of the bluff (where runoff would have flowed during rainstorms) and the prepared clay floor of the sawmill, perhaps in an effort to control drainage around the mill.  A similar brick-filled trench was discovered during the 2010 and 2011 field seasons on the upper bluff, as can be seen in the blog updates here and here.

The surface of the brick-filled deposit and adjacent clay feature (view to north).

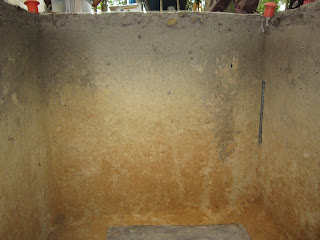

Profile view (to east) showing excavated clay feature and remaining bricks in unit walls.

On the bluff summit, two ongoing excavation units continue to provide clues as to the possible Apalachee structure surrounding one of two clay hearth features discovered during our 2012 and 2014 field seasons.  The southernmost unit has been slowed considerably by the careful excavation of the intersecting trench features and clay cap we now believe to have been associated with a log skid road potentially constructed for the Cooper mill during the early 19th century, but in undisturbed deposits below these features several postholes have appeared, at least one of which is substantial and deep enough to have been some sort of wall or roof support post for an Apalachee roundhouse.

Sabrina, Emma, and Darby work on excavating sediments in their unit in the possible Apalachee structure.

Sabrina and Emma show off a completed map of the fully-excavated trench features at the base of their unit.

The other unit to the northeast came down on at least two postholes, one of which is similarly deep and substantial, and which may also be part of the structure we are looking for.  This unit is presently being profiled (scale drawings of stratigraphic layers and other features in all four walls) before backfilling.

Olivia, Brenna (Darby's sister), Jillian, and Darby work on mapping Olivia's unit.

Olivia takes measurements for a profile map of her neatly-excavated unit.

We have also been employing some additional technology in our fieldwork this summer, including the new, the old, and the super-old.  The "new" technology was a ground penetrating radar (GPR) operated by Archaeology Institute archaeologist Jennifer Melcher last week with the assistance of our students.  This instrument provided a readout of subsurface disturbances under the grassy field where previous shovel testing suggests there may have been a sawmill-era residence or other structure on the bluff summit away from the main mission and mill complex, and results will be ground-truthed soon with additional shovel tests in the areas where possible anomalies appeared.

Melissa, Jennifer Melcher, and Darby take readings with the GPR.
The "old" technology is a standard optical transit, which has been serving as a reliable backup for our laser-enabled total station unit that occasionally has "issues" (or which may need to be set up in a different area of the site).  Dr. Worth trained several students in the use of the transit (which he was originally trained to use during 1980s-era archaeology), and it continues to serve well for checking elevations during fieldwork.

Jillian and Darby work on leveling the optical transit.

Olivia and Jillian take elevations using the transit and metric stadia rod.
The "very old" technology tried over the past week was a "smudge pit" created in a metal can in order to generate sufficient smoke to keep the mosquitoes and yellow flies at bay.  While labor-intensive, this technique has proved effective, though building a hot fire in the middle of the summertime conditions on site sometimes seems to counteract the benefits gained by the smoke.  Based on several days of experimentation by Dr. Worth, the operation of a smudge pit seems to depend on generating a hot enough fire using oak or other woods that build up a solid base of coals, and then periodically adding green or moist wood on top of the coals to generate the most smoke.  When the fire is burning hot, the smoke largely disappears, but when the smoke is best, there is a risk that the fire and coals will die out (plus the smoke is actually so copious that it can be hard to breathe).  The key seems to be in balancing the two forces (coal-generating hot fire and smoke-generating smoldering coals), and this may indeed explain why most in-ground smudge pits found archaeologically here at Mission Escambe seem to have been fed with corn cobs, which could easily soak up water and then smolder for a while on a bed of live coals inside a structure.  The fire was probably generated in the main hearth, and the smudge pit was used sparingly to generate just enough smoke to expel the bugs.

Closeup of the "smudge can" in operation.

View of the bug-scattering smoke wafting across the dig site.

During one of our rain days, the students from both the Colonial Frontiers and Arcadia UWF field schools traveled to First City Art Center in downtown Pensacola, where they were able to take part in a special demonstration and workshop on glassblowing arranged for the UWF group.  Students were even able to make their own colored glass globe ornaments for a modest price, learning some of the basics of the ancient art of glassblowing.  This was a great way for students and staff alike to get the experience of seeing and participating in the creation of glass objects not dissimilar from the hand blown glass bottles that we find fragments of routinely at Molino.  We are very grateful to the folks at First City Art Center for hosting the UWF group.

The 2015 Colonial Frontiers crew at First City Art Center.

Olivia heats the glass in the furnace while rotating it.

Melissa blows air into the glass bubble to create a globe.

Jillian carefully shapes the glass using a wooden block soaked in water.
Finally, on a happy side note, one of our current student supervisors, Kayla Rowe, got married this past weekend, and a number of members of our past and present Molino archaeology crews attended the Hawaiian-themed wedding (group picture below).  We wish Kayla and her husband all the best in her future happiness!

Molino attendees to Kayla Rowe's wedding; pictured are Chelsea Randall, John Worth, Michelle Pigott, Jen Knutson, Sabrina Cummings, Kayla Rowe, Kristin Parrish, Jillian Okray, Emily Dietrich, and Melissa Maynard.




Sunday, June 7, 2015

Three weeks down

Crew lunch sitting around the location of the hearth found in 2014.
Three weeks into our 2015 summer field school season, the PCF crew is making good progress in both the mission and sawmill areas of the site.  On the terrace summit, excavations continue in two 1x2m units along the the possible wall-lines of the circular structure predicted to surround the burned clay hearth discovered last year (and around which our entire field crew had lunch this past week, sitting within what would have been the walls of this presumptive Apalachee structure; pictured above).

The southern unit intersected the clay-capped trenches we now believe resulted from an early 19th-century log skid road, and these features are currently being excavated to allow progress in the underlying and adjacent undisturbed mission-era midden and possible wall line (pictured below). Mission-era artifacts are still being produced in this unit (possible pipe bowl rim pictured below), with more doubtless to come once the later features are removed.

Emma and Tyler carefully removing the yellow clay from the underlying trench fill.



Tyler holding a possible pipe bowl or tiny bowl fragment.
Sabrina bisecting the shallow postmold.
The eastern unit has already produced a small, shallow post feature that may relate to benches or walls within the structure (pictured while being bisected, to left), as well as quite a bit of residential debris from the mission period, including abundant Apalachee ceramics, gunflint flakes, and a good number of small fragments of Spanish majolica dishes (pictured below).

Several tiny sherds of majolica, one with orange and brown paint under the glaze.


Jodi and Darby working on all four unit profiles.
The unit in Area C to the south that had been begun in 2014 was finally completed and backfilled this week, and detailed profiling of the stratigraphy and the clay-lined feature disturbance in it will help us interpret this unit in light of the line of three deep posts found just to the northwest in an adjacent unit last year (which we plan to explore next in this area).
All four profiles lined up together showing corresponding strata.






To the east below the bluff edge, three excavations in Area F are probing the layout of the late 19th-century sawmill here. On the bluff slope, a 1x2m unit is still being lowered to the elevation of a brick floor discovered last year in a nearby shovel test.  This flooring structure seems to have been covered in accumulated soil from higher up the slope, and while most of the overlying artifacts date to the mill period, some earlier material also appears in these deposits, presumably having washed in from above.
Jillian and Caroline excavate around several concreted mill-era iron objects.

The nearby shovel test at the base of the bluff has dropped right on top of the edge of what initially appears to be some sort of clay floor or wall foundation, which is adjacent to (and partially mixed with) a rubble deposit with large broken bricks and brick fragments and other debris mixed with dirt.  The explanation for these finds is still unknown, but continued excavation in this shovel test should provide important clues.
View of brick rubble adjacent the clay feature in the shovel test (facing east).

Farther east, a new 1x2m unit was just opened on Friday out in the middle of the sawmill structure on the shaded lower terrace, and also in the middle of the worst infestation of mosquitoes at the site.  Roots are plentiful in this unit, including huge masses of greenbrier roots, such as the gargantuan one pictured below.  Probing suggests there should be another brick floor in this area, and we have hopes that debris from the 1884 fire that destroyed Molino Mills might show up in this area, permitting us to learn more about the spatial layout of the mill and its machinery and work spaces.
Michelle Pigott and Jen Knutson triumph over a greenbrier root; Kelsey and Melissa in background.


In addition, we finally have our waterscreening station operational now (pictured below), allowing our crew to make better progress through the sometimes-dense clay deposits at the site.
Waterscreening with Darby, Caroline, Tyler, Sabrina, and Jillian.






















A few pictures follow of some of the animal residents of the site, including our self-appointed field dog, "Precious" aka "Diggity Dog."
A green tree frog perching perilously close to some huge thorns.

A tussock moth caterpillar crawling on Emma.

Our near constant field companion, "Precious" (or "Diggity Dog"); Tyler, Darby, and Kayla in background.


Sunday, May 31, 2015

Progress despite the rains

Kelsey Bruno holds an iron implement she just excavated.
Two weeks into our 2015 field school, our crew continues to make steady progress, despite a number of delays and missed time due to rainy weather and saturated ground, along with the normal startup difficulties in getting our total station and new datums fully aligned with the existing site grid.  One excavation located along the bluff slope has been effectively halted due to soggy ground, but a nearby shovel test at the foot of the bluff on the surface of the lower terrace has already begun to produce evidence of the sawmill that burned down here in 1884, including an iron tool or machine part (pictured above) and a possible corner brace, along with brick fragments.  This shovel test should drop to the presumed floor level of the sawmill within a level or two, where previous probing with a steel rod suggests there may be a brick floor or other structural evidence.

Additional evidence for mill-era activity on the summit of the terrace where the mission had been located is also abundant as in previous years, including near-surface scatters of brick fragments, slag, charcoal, iron nails and other fragments, and late 19th-century glass and ceramics.
Notable finds this week include a heavy iron object that may be a tool or machine component (pictured to left), a distinctive brass fitting from an as-yet unidentified object or implement, and an intact cobalt blue Bromo-Seltzer bottle that appears to date between 1891 and 1907 (the latter two pictured below).

Bromo-Seltzer medicine bottle made in Baltimore between 1891-1907.

Brass fitting or fastener with decorative design on one side.


Three 1x2 m excavation units in the mission area of the terrace summit made good progress this week, including one unit that was begun in 2014 and will be finished this year with the excavation of its base into sterile clay subsoil beneath an unusual clay-lined pit feature that appears to date to the sawmill period, but which falls in line with a series of three posts just to the west that we believe might be a mission-era structure wall, perhaps even the long sought-after church.  Ongoing excavations in two units to the north have been laid in along the predicted southern and eastern wall lines of a possible Apalachee circular residential structure with a clay floor and hearth feature found last year (along with a possible roof-support post nearby).  These units are both capped to some extent by what now appear to be post-mission-era clay deposits, one of which is currently theorized to have been a logging skidway with two parallel trenches and evenly-spaced trenches traversing it, resulting from the placement of round logs in the ground to assist in the dragging of felled trees across the ground to the sawmill (perhaps the early 19th-century sawmill operated at some distance west by Thomas Cooper).  When the skid road was replaced by a short railroad line in the Reconstruction era, the logs seem to have been removed and the entire roadway covered with a layer of hard yellow clay to fill in the trenches.  Later, another layer of mottled gray clay was also deposited over and around the roadway in this vicinity, and the amount of charcoal, slag, coal, and small brick fragments here might possibly represent the location of the blacksmith's shop documented for Molino Mills, or it could also be associated with the railroad engine that transported wood to the main rail line to the east.  Pictures of these clay deposits are below.

Emma Dietrich excavates the northern edge of the yellow clay that intrudes on mission deposits here.

Clear stratigraphic relationship between dark modern humus, mottled gray clay below, and brown mission-era midden deposit below that.


Underneath these clay deposits are the intact 18th-century midden deposit associated with the possible Apalachee structure.  Students found several rimsherds of Mission Red pottery in one of these units this week, as well as an intact but battered small honey-colored chert gunflint (all pictured below).  Within a few days we hope to begin seeing whether there are postholes extending below this midden representing the predicted wall line of the Apalachee structure surrounding the hearth found last year.

"French-style" gunflint, probably pistol sized.

Rounded rimsherd of a Mission Red vessel, painted on both sides.

Flattened rimsherd of a different Mission Red vessel, also red on both sides.


Below are additional photos of fieldwork since our last blog update.  Stay tuned for more as we make further progress in Week 3.

Olivia shovel-shaves the midden at the floor of her level.

Darby works on cleaning up the base of the unit begun in 2014.

Jodi and Emma team up to sift.

Darby holds the stadia rod to take elevations; Jodi in background.

Tyler shovel-shaves sawmill-era deposits in her unit.

Kayla works to square up the base and walls of her shovel test at the base of the bluff.
